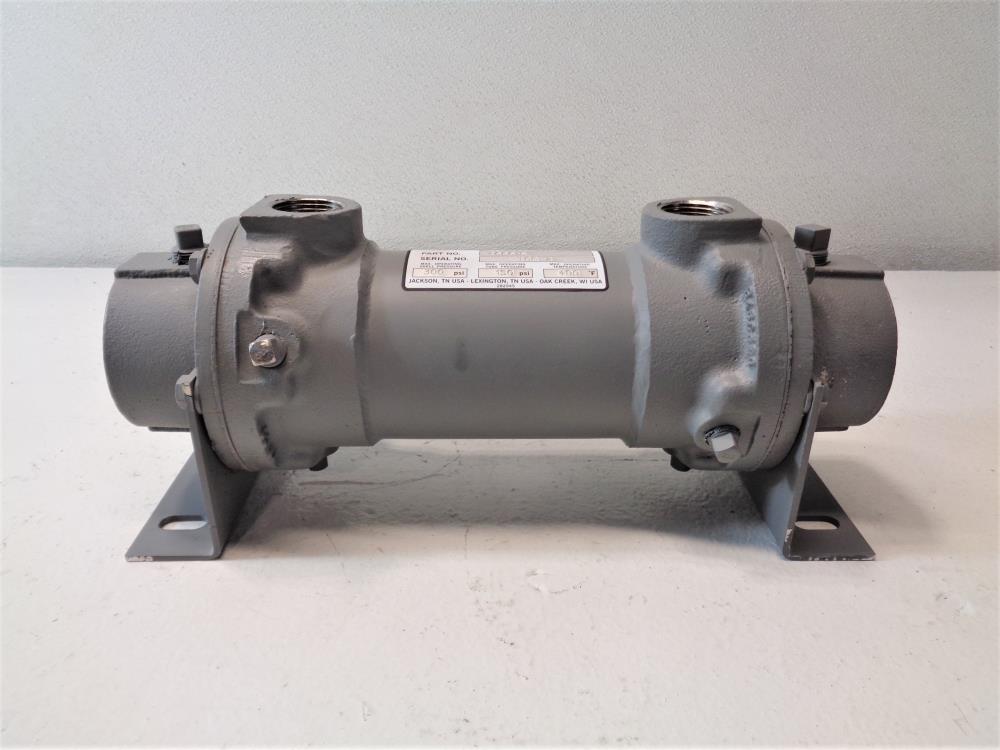

Young Touchstone Fixed Bundle Heat Exchanger, Model SSF-301-HY-1P, Part 266615

Young Touchstone Fixed Bundle Heat Exchanger, Model SSF-301-HY-1P, Part 266615

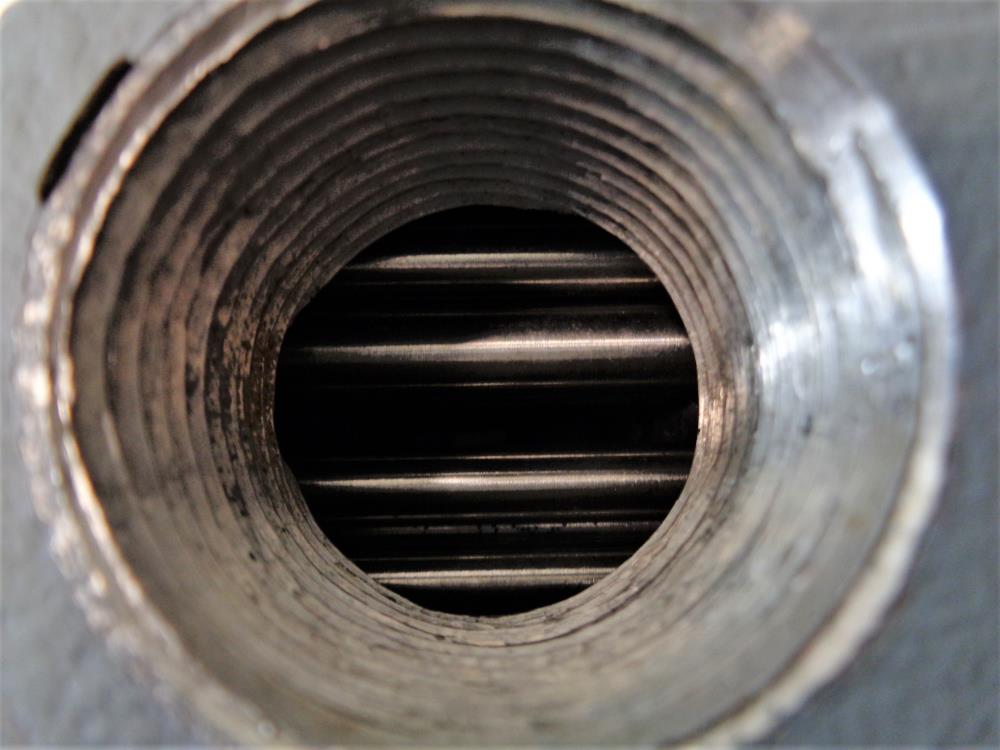

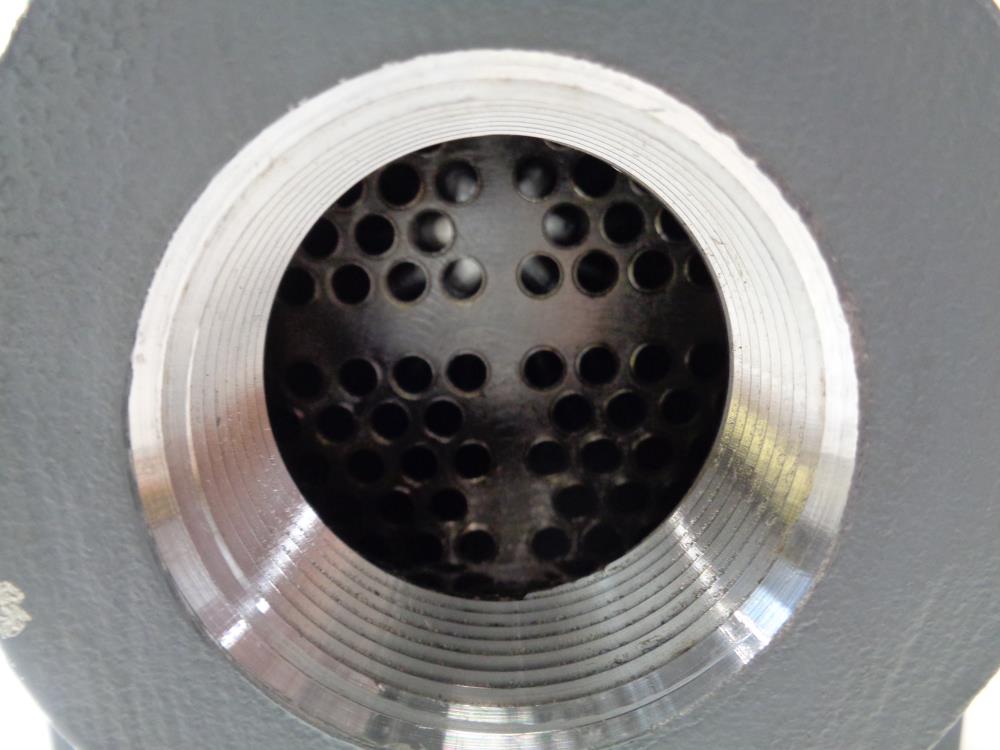

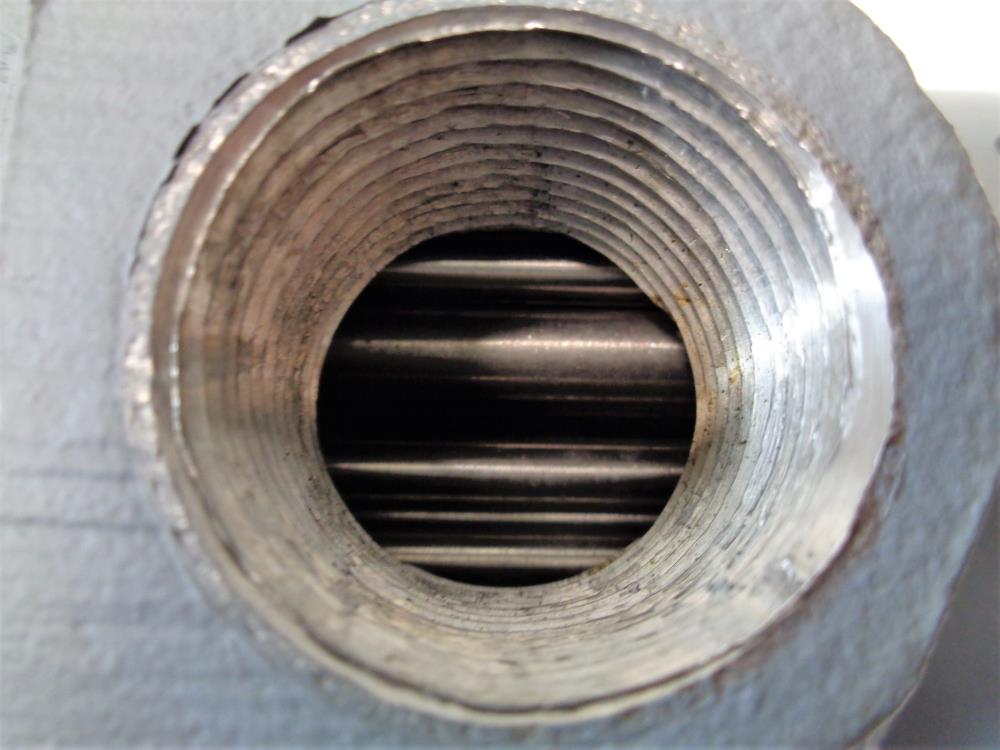

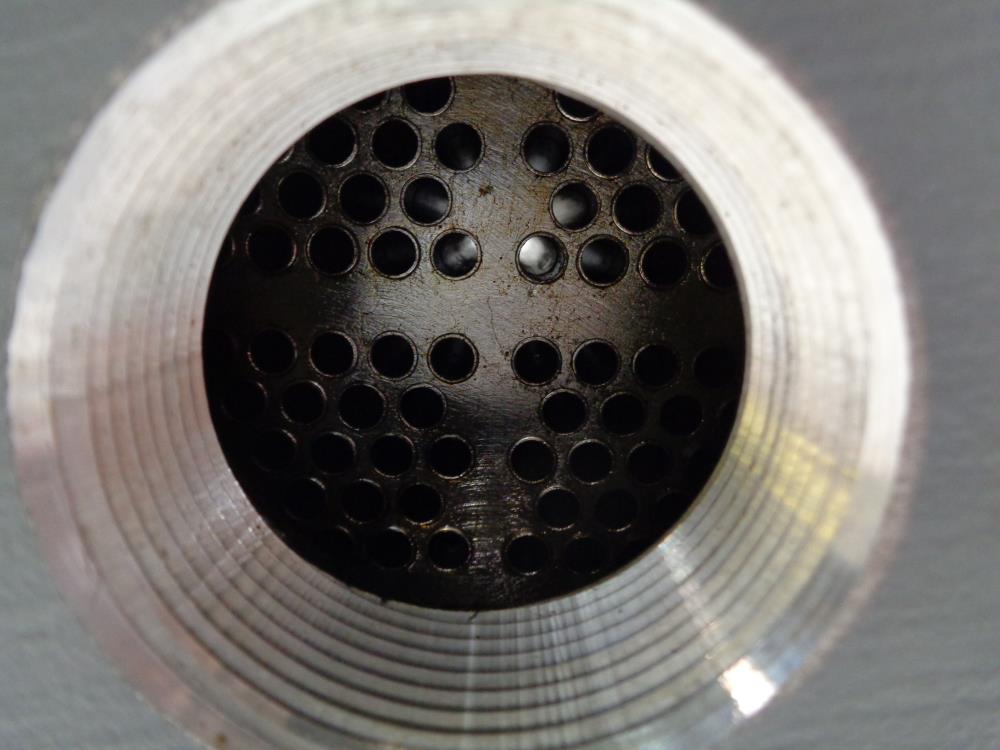

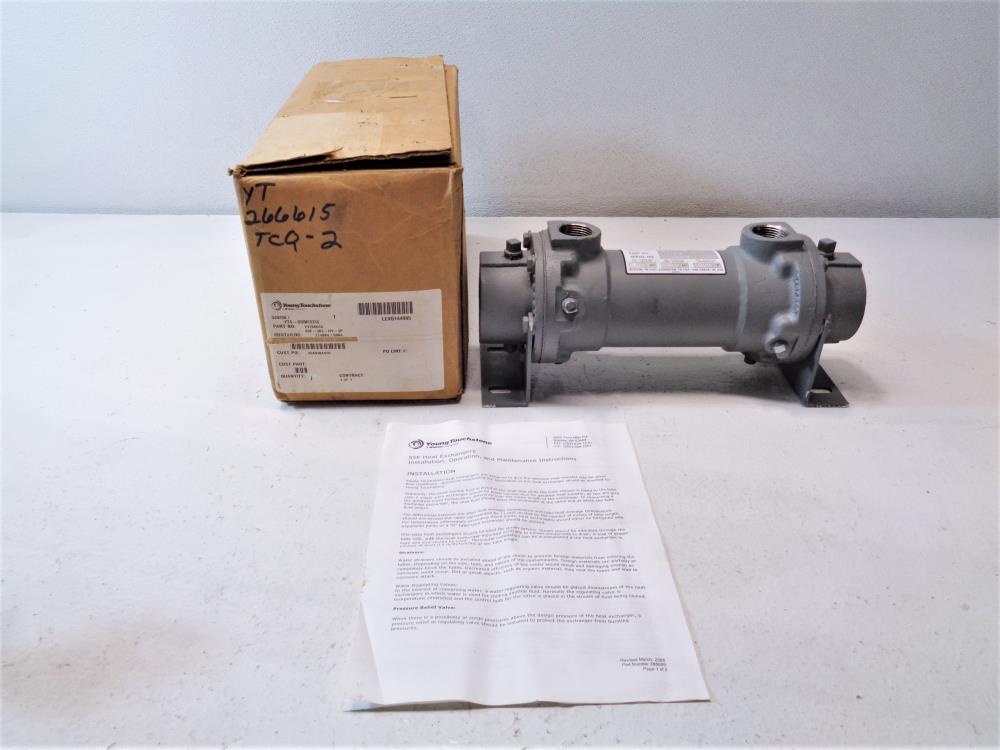

• Fixed Bundle Shell and Tube Heat Exchanger

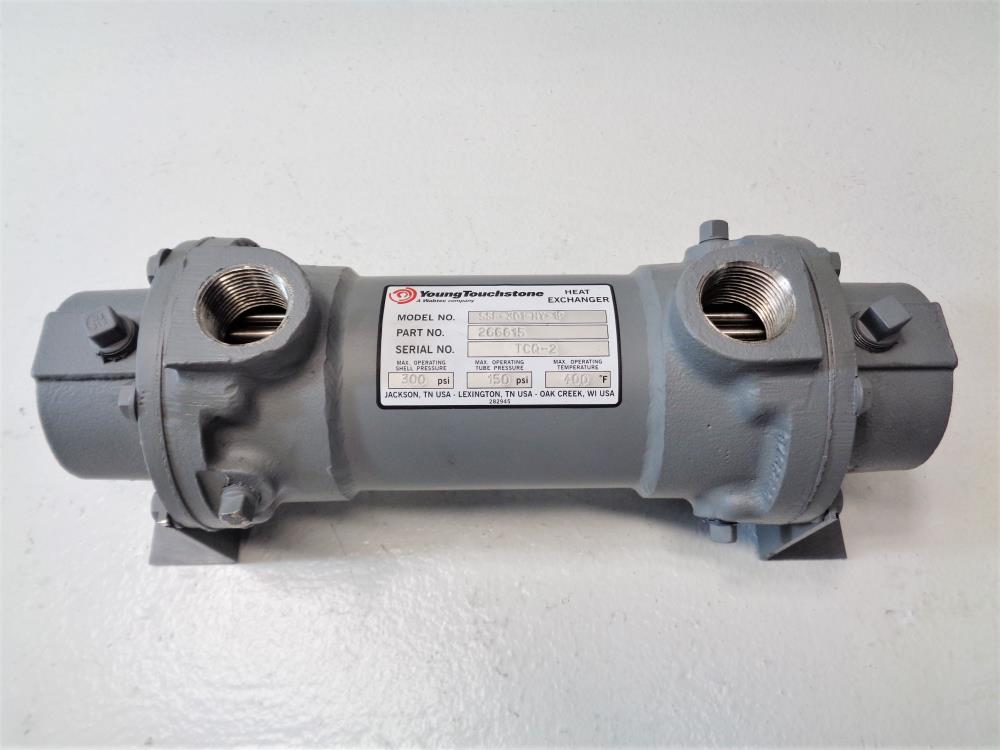

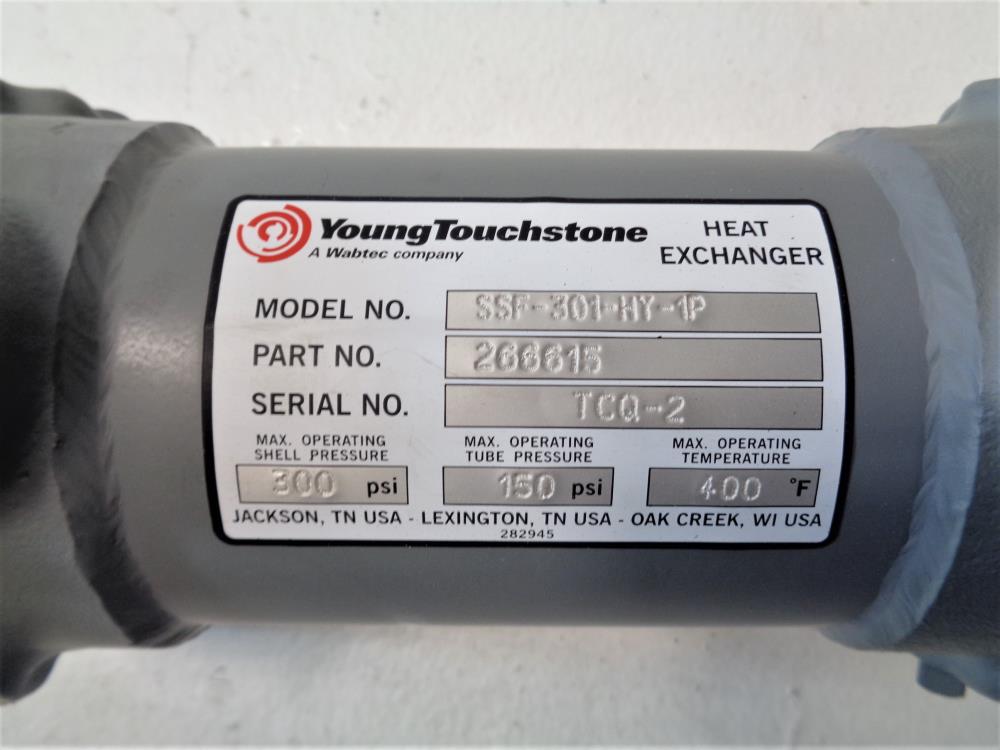

• Model#: SSF-301-HY-1P • Part#: 266615
• Max Operating Shell Pressure: 300 PSI
• Max Operating Tube Pressure: 150 PSI
• Max Operating Temperature: 400°F

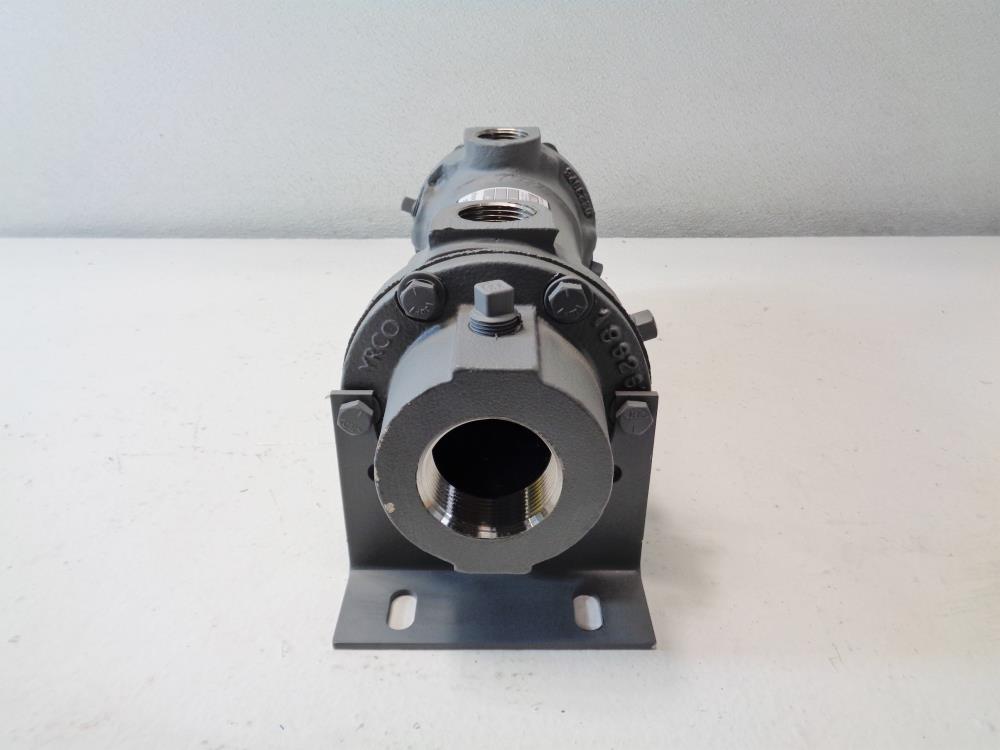

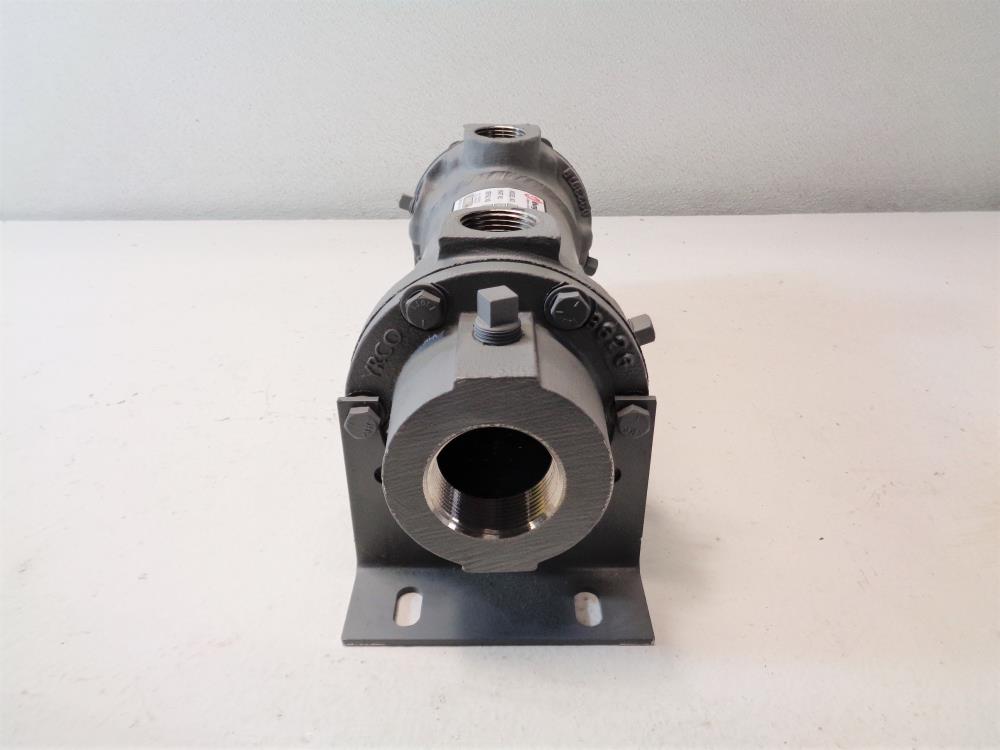

• 1" NPT x 1.5" NPT

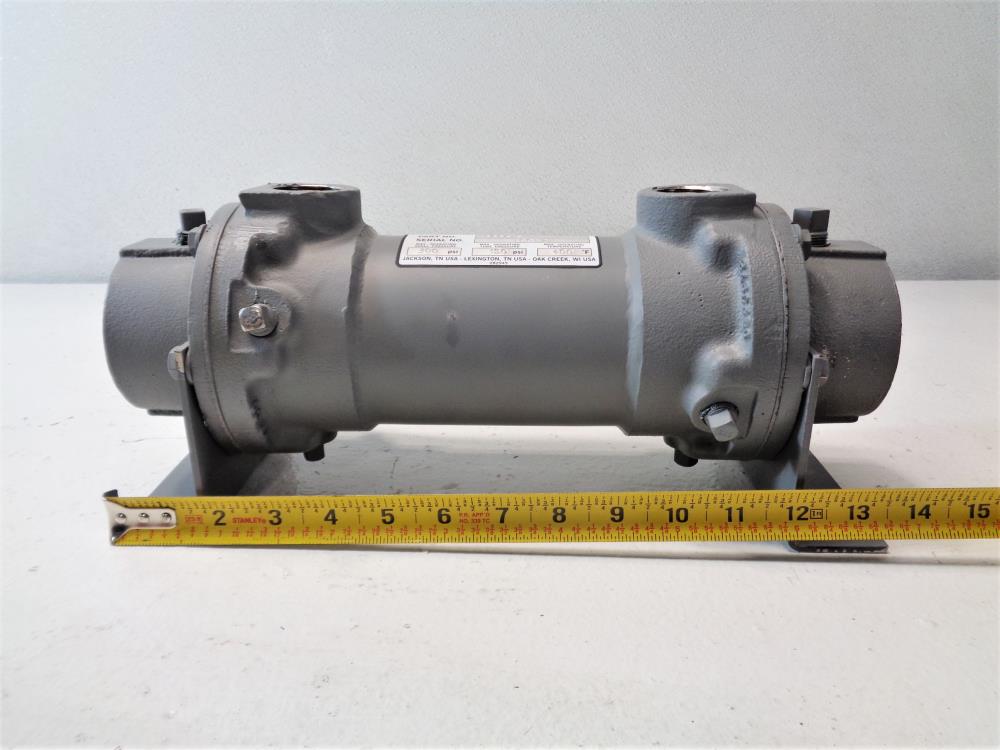

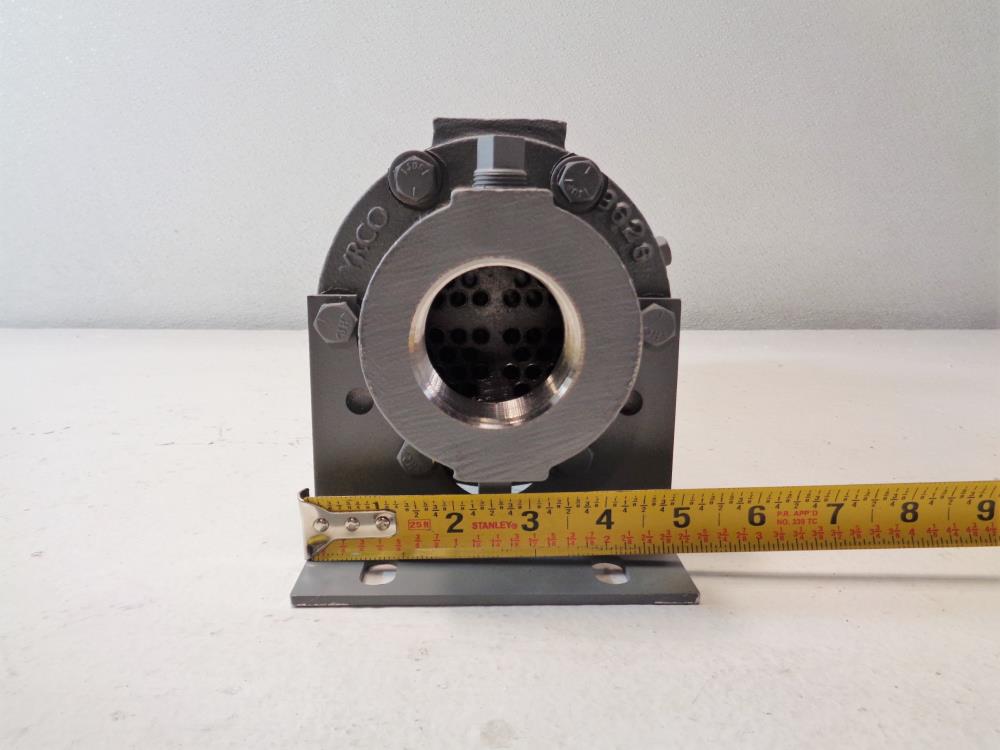

• Approx. Overall Unit Length: 14" • Approx Overall Unit Width: 5"
• Type Code: SSF = Fixed Tube bundle with 300 PSI / 2070 kPa Shell and Stainless Steel Materials. • 3 = 3.62" Shell Diameter Code • 01 = 9" Shell Length Code • H = 1.13 Baffle Spacing Code • Y = 0.250" OD Tube Diameter Code • 1P = One Pass
• Stainless Steel Tubes • Stainless Steel Shell
