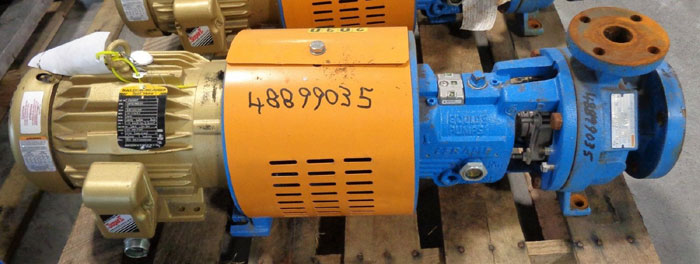

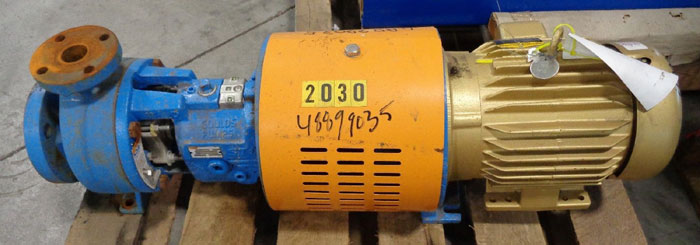

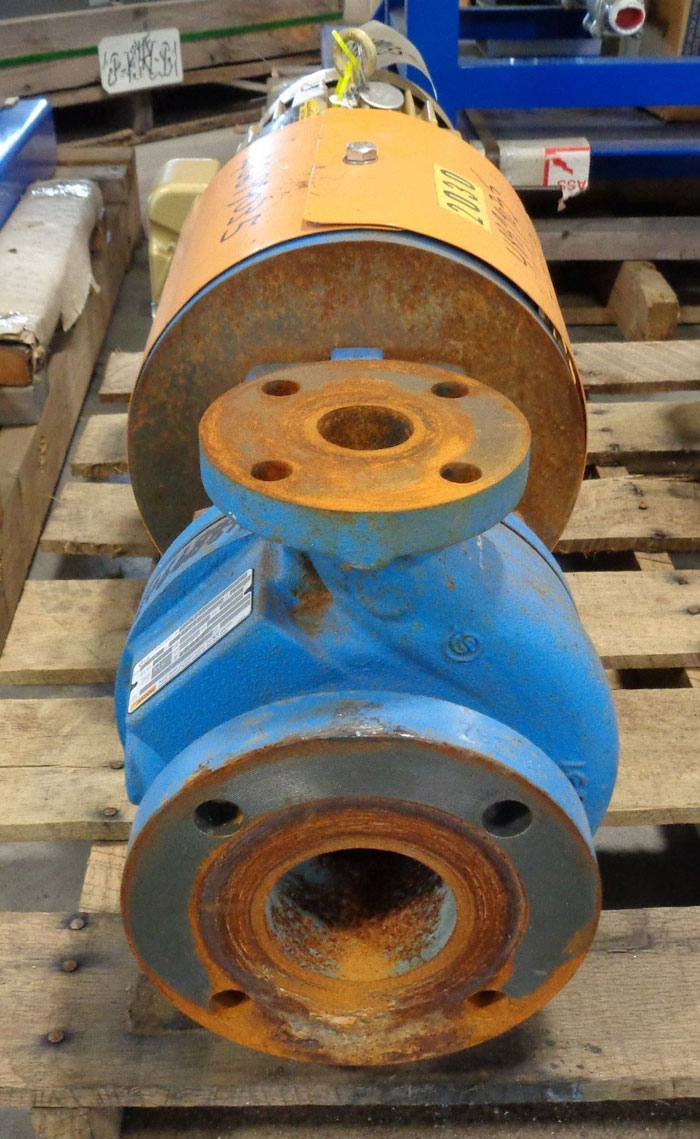

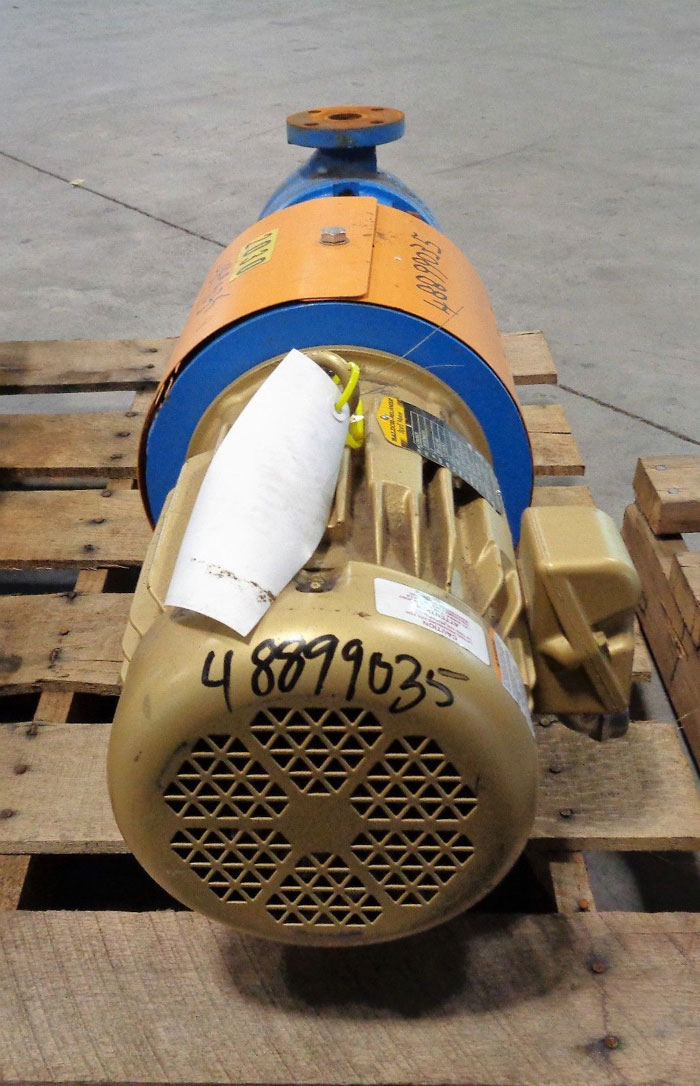

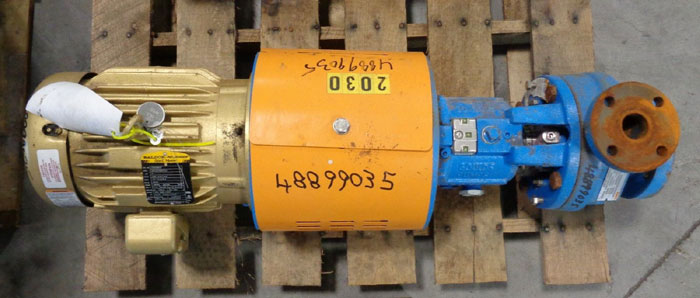

Goulds 3196 i-Frame Centrifugal Pump, Size 1.5X3-6, Ductile Iron (48899035)

Goulds 3196 i-Frame Centrifugal Pump, Size 1.5X3-6, Ductile Iron (48899035)

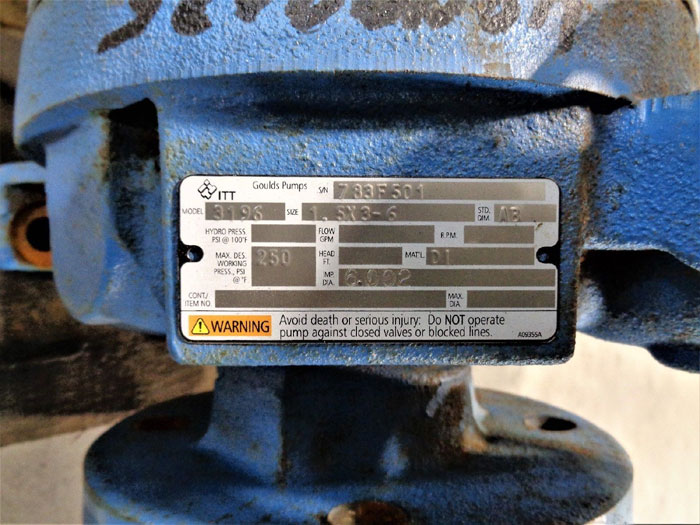

• Goulds i-Frame Centrifugal Pump
• Model#: 3196
• Serial#: 783F501
• Size: 1.5" x 3" -6
• Imp Dia: 6.002"
• Material: Ductile Iron
• STD. Dim.: AB
• Max Des. Working Press: 250 PSI
• Approximate 100 GPM at 175 feet total head.

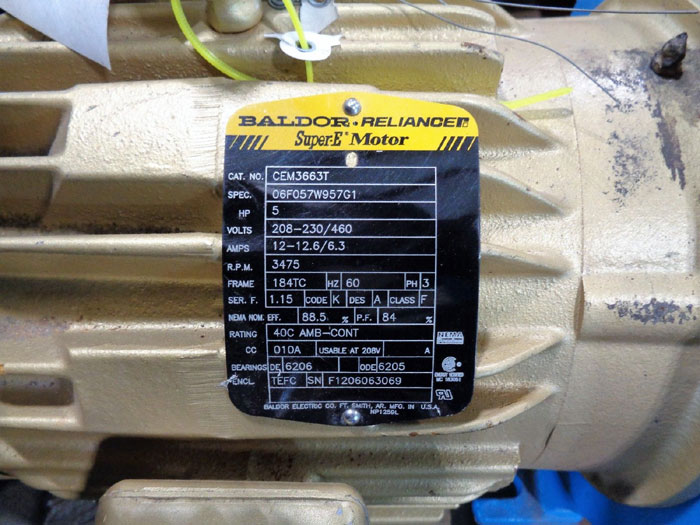

• W/ Baldor Super-E Motor
• Cat#: CEM3663T
• Spec: 06F057W957G1
• HP: 5
• Volts: 208-230/460
• Amps: 12-12.6/6.3
• RPM: 3475
• Frame: 184TC
• Hz: 60
• Phase: 3
• Ser. F.: 1.15
• ENCL: TEFC
