TOSHIBA HIGH EFFICIENCY 0.75 HP 3-PHASE INDUCTION MOTOR B3/44FMF2AOZ

TOSHIBA HIGH EFFICIENCY 0.75 HP 3-PHASE INDUCTION MOTOR B3/44FMF2AOZ

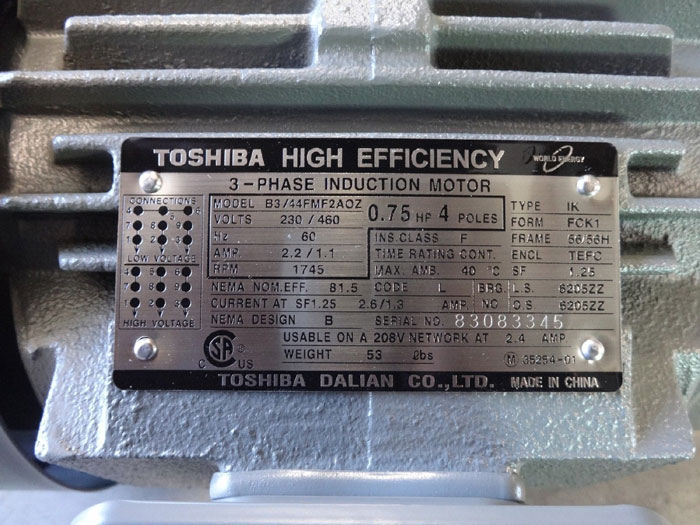

• TOSHIBA HIGH EFFICIENCY 3-PHASE INDUCTION MOTOR
• MODEL#: B3/44FMF2AOZ
• TYPE: IK
• FORM: FCK1
• HP: 0.75
• POLES: 4
• VOLTS: 230/460
• Hz: 60
• AMP: 2.2/1.1
• RPM: 1745
• NEMA NOM EFF: 81.5
• CURRENT @ SF 1.15
• NEMA DES. B
• INS. CLASS: F
• TIME RATING: CONT
• MAX AMB: 40°C
• CODE: L
• 2.6/1.3 AMP
• FORM: FCKL1
• FRAME: 56/56H
• ENCL: TEFC
• S.F.: 1.25
• USABLE ON A 208V NETWORK @ 2.4 AMP
