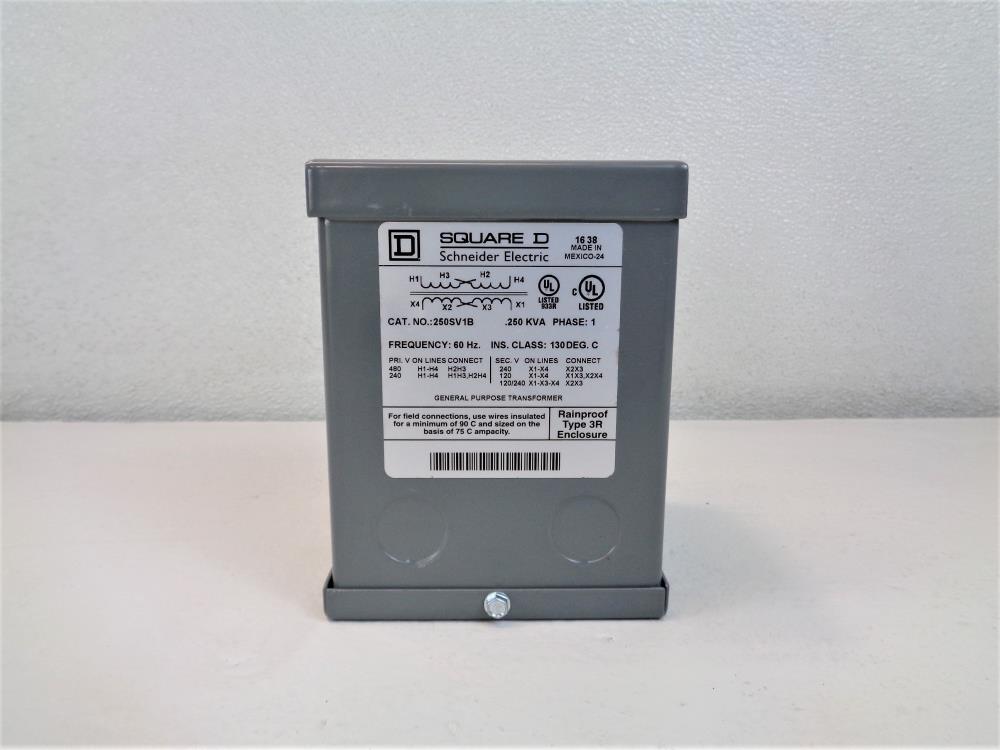

Square D General Purpose Transformer, 1PH .25KVA 240/480V, 120/240V, #250SV1B

Square D General Purpose Transformer, 1PH .25KVA 240/480V, 120/240V, #250SV1B

• Cat#: 250SV1B
• .250 KVA
• Phase 1
• Frequency: 60 Hz
• Ins. Class: 130 Deg. C
• Primary Volt 480 • On Lines H1-H4 • Connect H2H3
• Primary Volt 240 • On Lines H1-H4 • Connect H1H3, H2H4
• Secondary Volt 240 • On Lines X1-X4 • Connect X2X3
• Secondary Volt 120 • On Lines X1-X4 • Connect X1X3, X2X4
• Secondary Volt 120/240 • On Lines X1-X3-X4 • Connect X2X3
• Rainproof Type 3R Enclosure
