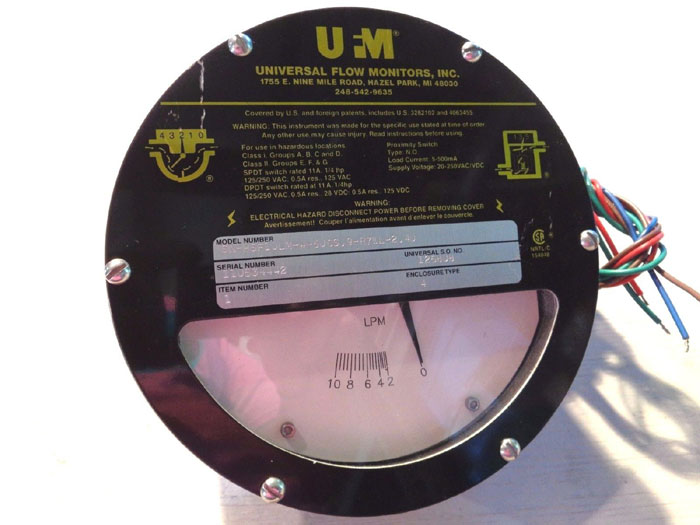

UNIVERSAL FLOW MONITOR 1/2" VARIABLE AREA FLOWMETER N-BSF10LM-4-50CS.9-R7WL-2.4D

UNIVERSAL FLOW MONITOR 1/2" VARIABLE AREA FLOWMETER N-BSF10LM-4-50CS.9-R7WL-2.4D

• UNIVERSAL FLOW MONITORS 1/2" VARIABLE AREA FLOW METER
• R-BOX SMALL VANE STYLE

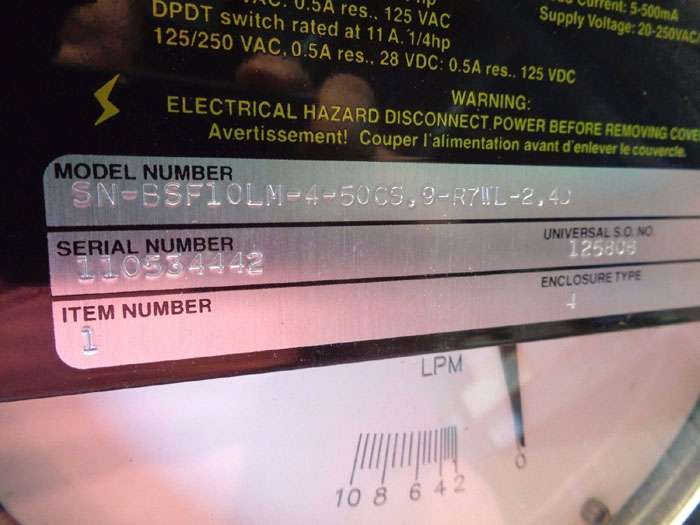

• MODEL#: SN-BSF10LM-4-50CS.9-R7WL-2.4D

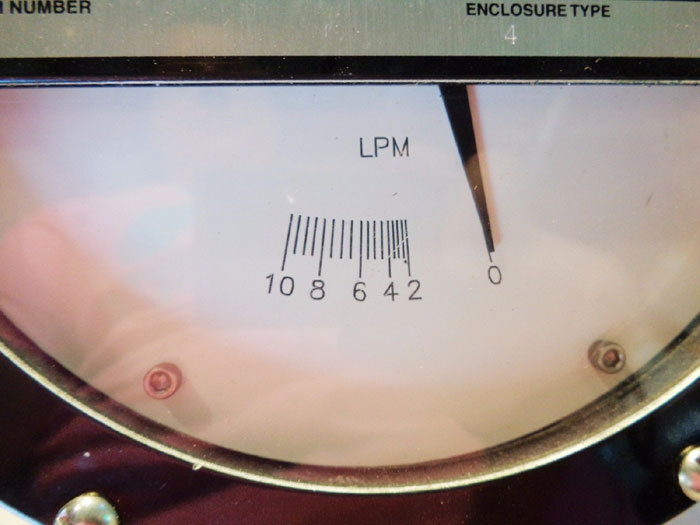

• 10 LPM MAX
• ENCLOSURE TYPE: 4
• SPDT SWITCH: 11 A 1/4 HP, 125/250 VAC : 0.5A RES., 125 VAC
• DPDT SWITCH: 11A 1/4"HP, 125/250 VAC : 0.5A RES. 28 VDC : 5A RES., 125 VDC
• PROXIMITY SWITCH TYPE: N.O.
• LOAD CURRENT: 5 - 500 MA
• SUPPLY VOLTAGE: 20 - 250 VAC/DC
• ONE SPDT

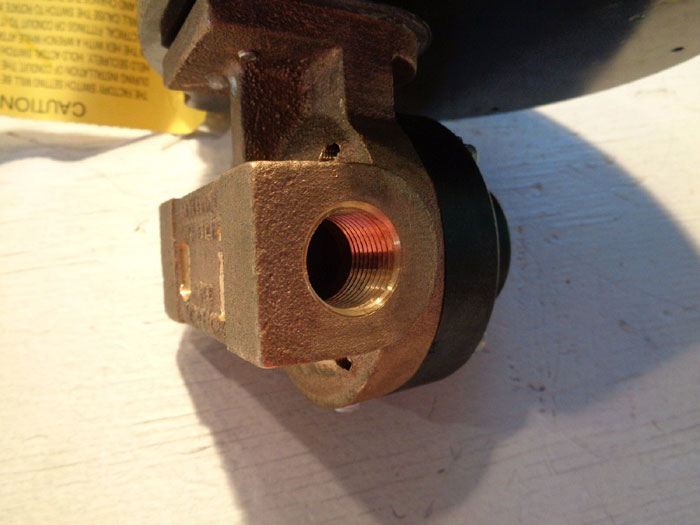

• BRONZE VALVE
• VITON SEAL
• RIGHT TO LEFT FLOW
• WEATHERPROOF
