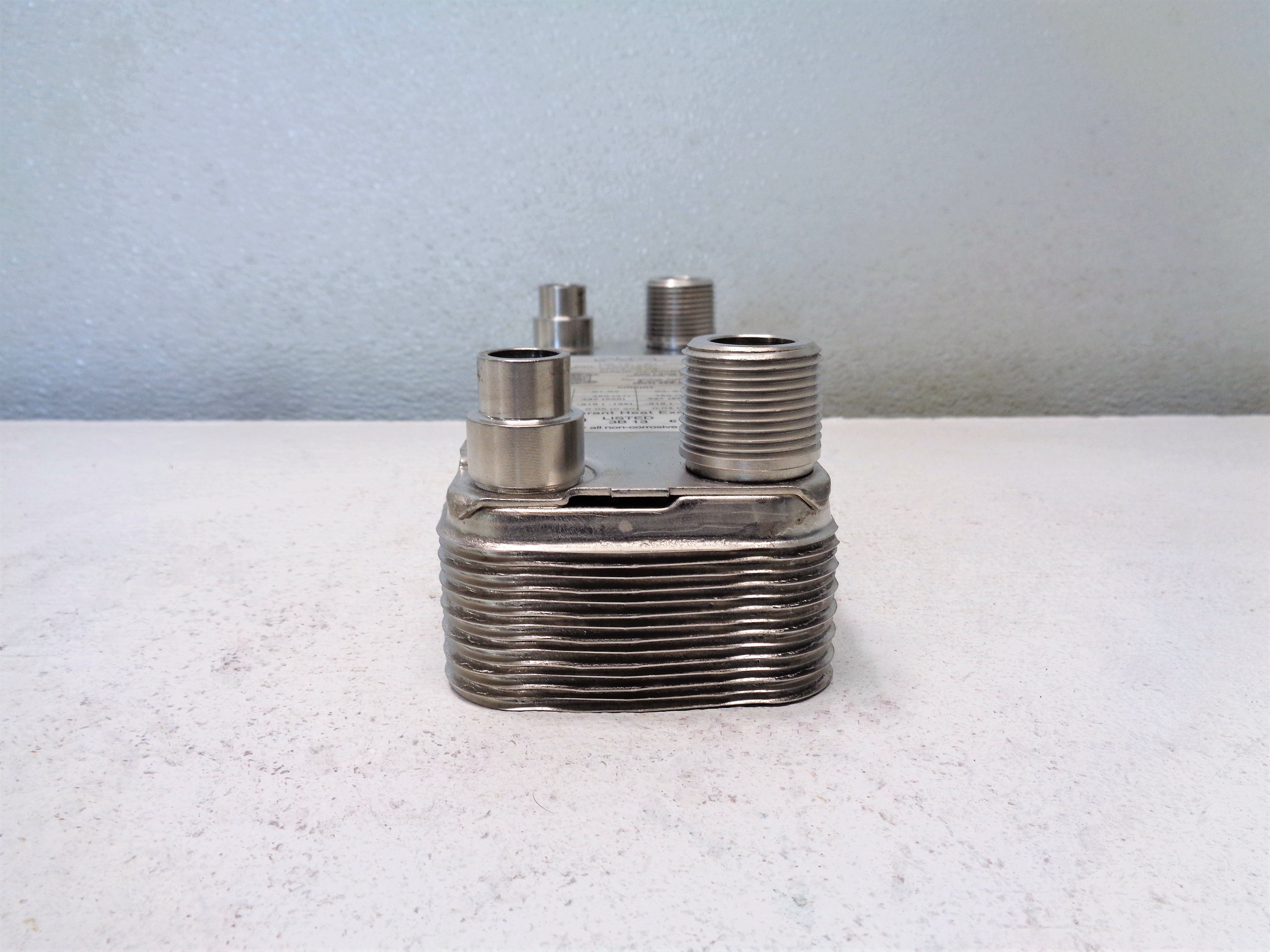

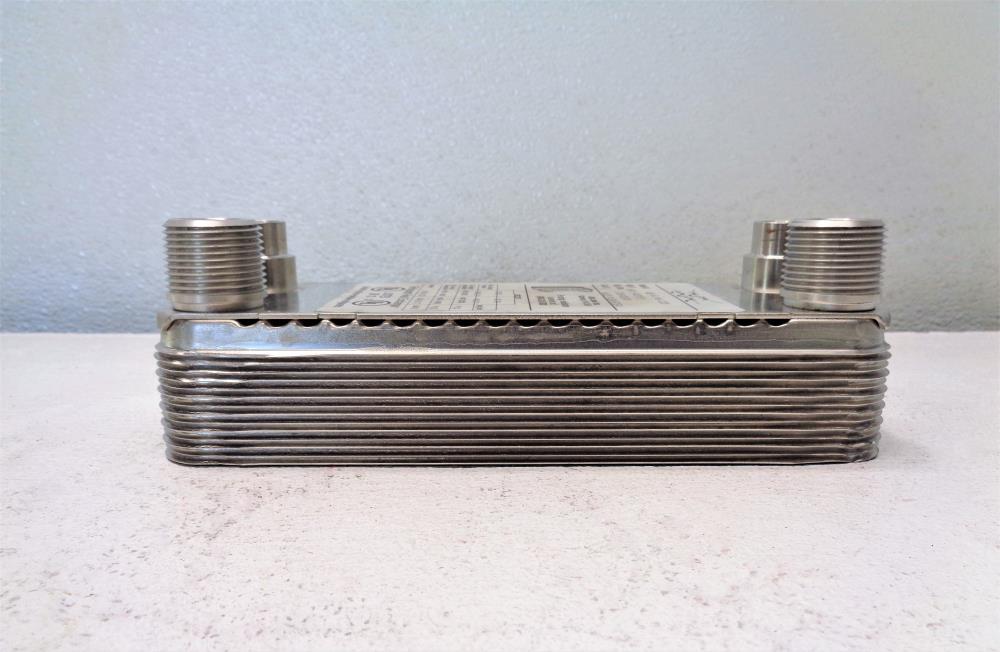

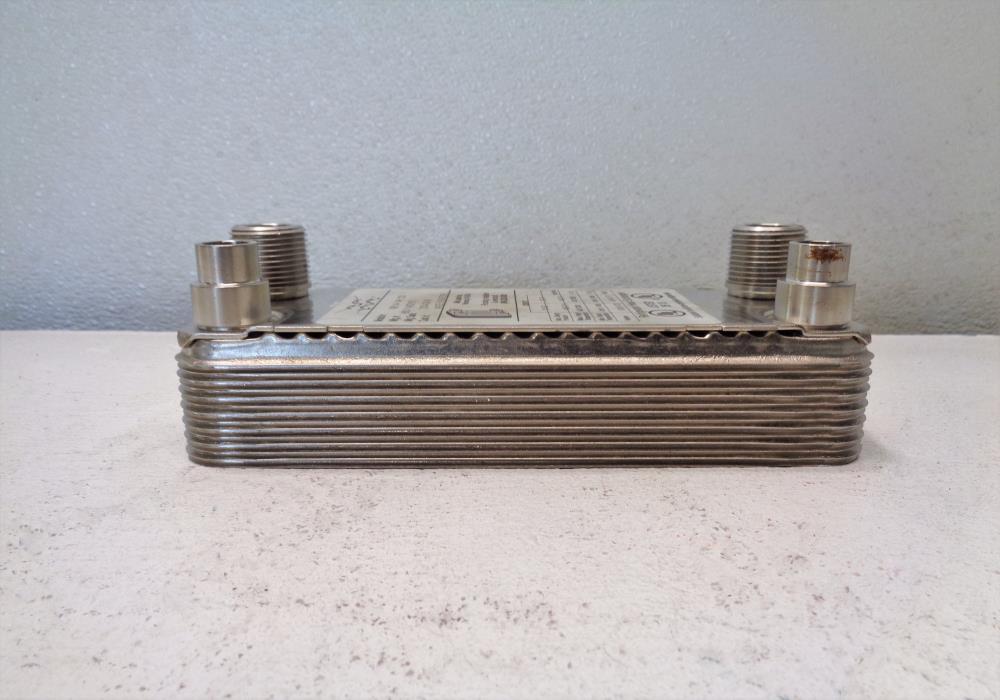

Alfa Laval Brazed Plate Heat Exchanger for Refrigerant, 14 Plates, NB14- 14H C03

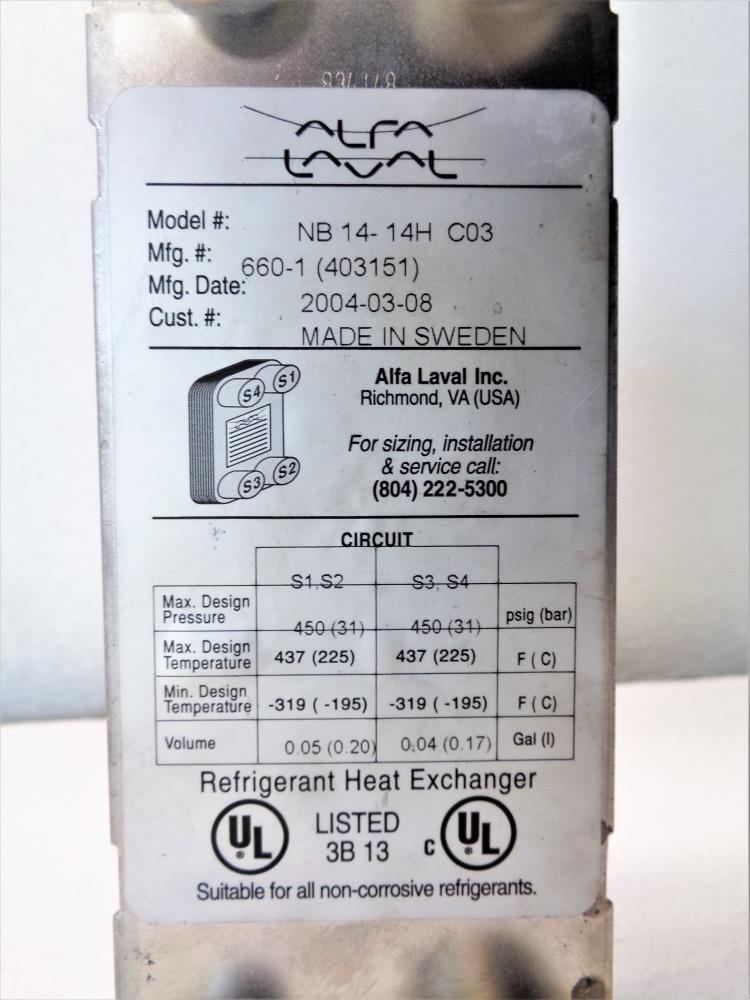

Model#: NB 14- 14H C03
Mfg#: 660-1 (403151)
Circuit S1, S2, S3, S4 Max Design Press: 450 psig (31 bar)
Circuit S1, S2, S3, S4 Max Design Temperature: 437°F (225°C)
Circuit S1, S2, S3, S4 Min Design Temperature: -319°F (-195°C)
Circuit S1, S2 Volume: 0.05 Gal (0.20 l.)
Circuit S3, S4 Volume: 0.04 Gal (0.17 l.)
Suitable for all non-corrosive refrigerants.
Product Family: NB • Standard Pressure (Up to 40 Bar) • Capacity: 14 • Plates: 14 • Channel Type: H
